The previous three posts provide background information about this printer. This is the first part of how to build the “final” version of this printer.
3DR “Simple” Delta Printer, Part I
3DR “Simple” Delta Printer, Part II
3DR “Simple” Delta Printer, Part III
Building the 3DR “Simple” Delta Printer, Part I
Building the 3DR “Simple” Delta Printer, Part II
Building the 3DR “Simple” Delta Printer, Part III

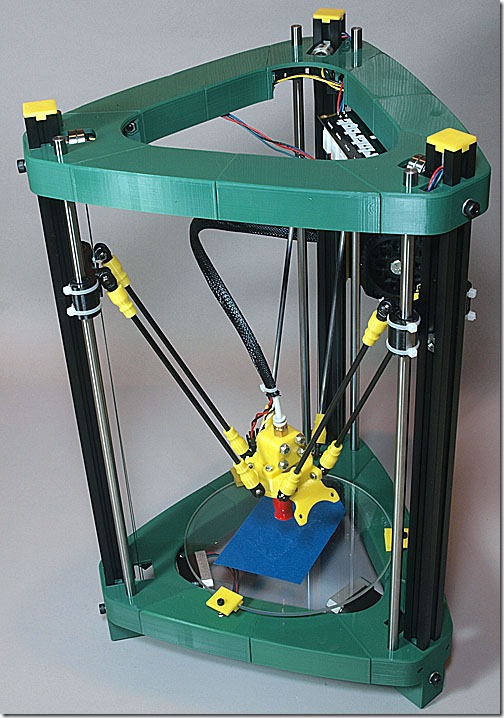

Since my last post, I’ve redesigned almost every part of my 3DR “Simple” Delta printer. Yesterday I got it printing, and it works really well. I have one final parts I’m working on, which is a combination fan and ring LED mount. Once these are done, I’m going to declare this complete.
Sourcing Parts
The idea of this project is that you can start with a Printrbot Simple, which is a very low cost printer. You can use the Simple to print all the printed parts required for this build and then start the build. You won’t need to disassemble the Printrbot Simple until you’ve assembled the printed parts. Then, and only then, you can disassemble the Printrbot Simple and use it’s “vitamins” to finish the build. Even so, you’ll need to purchase some additional parts, such as the smooth rod and extruded aluminum.
You’ll need to decide how tall you want to make your printer. My printer has a maximum print height of about 80mm, which works very well for me. However, you’ll most likely want a little more height. The first version of my design had the same dimensions as RichRap’s 3DR RepRap Delta Printer and had a larger maximum height. However, when I discovered I couldn’t use the full diameter, I widened the printer, which resulted in longer rods, and therefore reduced my maximum print height. So, here is what I would recommend:
Smooth Rods: 500 mm
Extrusions: 550 mm
This will give you a maximum print height of about 150mm. You can, of course, choose different lengths. Just make sure the smooth rods are 50mm shorter than the extrusions. Here are some links on Msiumi’s US sight for these parts:
- 6 each of RGOCG8-500 Precision Rods - g6 Tolerance / h7 Tolerance
- 3 each of HFSB5-2020-550 Aluminum Extrusion - 5 Series, Base 20, Four-Side Slots
- 14 each of HNTAJ5-5 Post-Assembly Insertion Short Nuts -For HFS5 Series Aluminum Extrusions
- 6 each of SC625ZZ Stainless Steel Small Deep Groove Ball Bearings
Note: The 400mm long smooth rod is about $12 per rod. But as soon as you increase this to even 401 mm, the price goes up to $19 a rod. So if you’re happy with 80 mm maximum print height, go with 400 mm rods. Otherwise, you can go up to the maximum of 500 mm length for the smooth rods. I’ve also listed T nuts that have a spring to hold them in place, and can be inserted after the fact, which is really handy. When I added the above to my shopping cart, the total came to $147.
There are some other supplies I got from tridprinting.com:
- 3D-Printer-Rod-Ends, which is a set of 12 Traxxas 5347 joints
- Alternatively, you could get their pre-assembled rods, either 180 mm or 240 mm (on my printer I have the rods 200 mm long from joint to joint)
- 65 lb Spectra Line
- Optional, 3 each of Aluminum Filament Drive Spool
- 2 each of 10 mm Width Push Fit Connectors
- 2 mm Inside Diameter PTFE Teflon Tube
If you purchase 180 mm rods, you won’t be able to get the full 170 mm diameter—it will probably be closer to 160 mm. If you plan to assemble your own rods instead, you’ll need to purchase some carbon fiber rod:
- McMaster Part 2153T32, carbon fiber tube, .156” outside diameter, 48” long.
Electrical Connectors
The following electrical connectors are optional, and you’ll only need them if you choose to use new connectors instead of simply splicing new wires into the stepper motors (covered in the next installment):
- (optional) Molex 1625-4PRT .062” 4-pin connectors (to connect the steppers to the wires that go up the extrusions)
- (optional) Molex WMLX-102 .100 4-pin connectors (to replace the stepper-motor to Printrboard connections)
- (required) 26 gauge stranded wire in red, blue, green, and black
Screws and Nuts
I’m still working on updating the list of all the screws required. Here’s what I have so far:
- M3 x 6 button head (9)
- M3 x 16 screws (12)
- M4 x 10 screws (39)
- M4 x 20 screws (18)
- M4 nuts (57)
- M5 x 8 (6)
- M5 x 20 button head (5)
- M5 Washers (9)
- M5 Nuts (3)
Extruder Parts
The extruder needs some parts that don’t come with more recent Printrbots, and perhaps the easiest (and even most cost effective) way to get these might be to order the hard-ware only kit from Makerfarm (they call it the No Printed Parts option, which is $15 at the time I’m writing this): http://www.makerfarm.com/index.php/3d-printer-kits/greg-s-hinged-accessible-extruder.html
- M3 x 50 (2) for extruder
- M8 x 20 (1) smooth or threaded rod (no head)
- Hobbed bolt and other extruder parts (not included in direct-drive Printbot Simple kits)
There are various M3 nuts and screws. However, I believe all of these can be reused from the Printrbot Simple.
Printrbot Simple Parts
Here is a list of parts I reused from the Printbot simple (so you won’t have to buy them)
- Stepper motors (4)
- Hot end
- Printrboard
- Power supply
- LM8UU bearings (6)
- Hobbed bolt and other extruder parts (not included in direct-drive Printbot Simple kits)
- M3 x 10 screws (12)
- M3 nuts (24)
If you have a Printrbot Simple V2 with the direct-drive extruder, you’ll also need a hobbed bolt (which is what my V1 came with): http://printrbot.com/shop/hobbed-bolt/. Alternatively, you can purchase the hard-ware only kit from Makerfarm (link in previous section)
While you’re there, you might choose to use their injection-molded gears instead of 3D printing the gears: http://printrbot.com/shop/injection-molded-large-and-small-gear-set/
Other Parts
You’ll need a 170 mm diameter print bed. I purchased a 170 mm round Borosilicate plate from Trinity Labs: http://trinitylabs.com/products/borosilicate-glass-170mm-round. Without a heated bed, you don't really need Borosilicate glass. So you might be able to get a glass place to cut one for you.
Assembling the Lower Frame
As I’ve mentioned before, all the printed parts are designed to be printable on a Printrbot Simple, with a 100mm x 100m print bed. That means you should be able to print all the printable parts on just about any printer.
For most of the parts, I print with 0.2 mm layers, 20% infill and either two or three perimeters (I’m not sure it makes much difference).

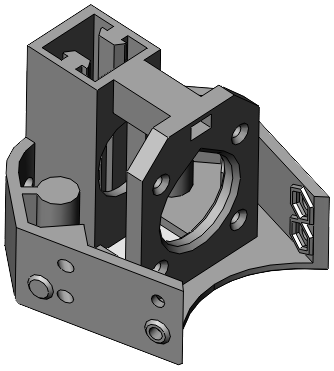

Print 3 of 3DR Bottom Motor Mount Simple.stl:

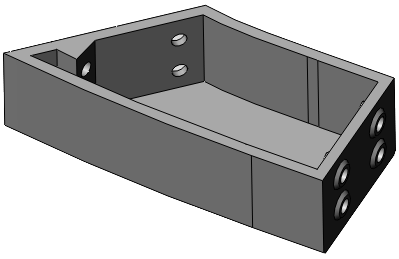

Print 3 of Wings.STL:

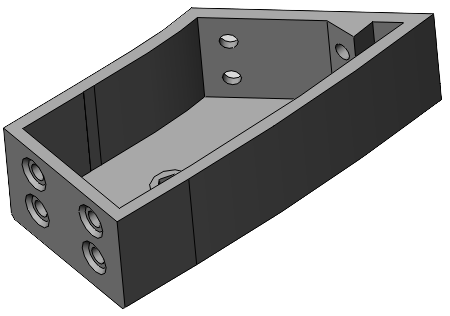

Print 3 of Wing Mirror Long.STL:

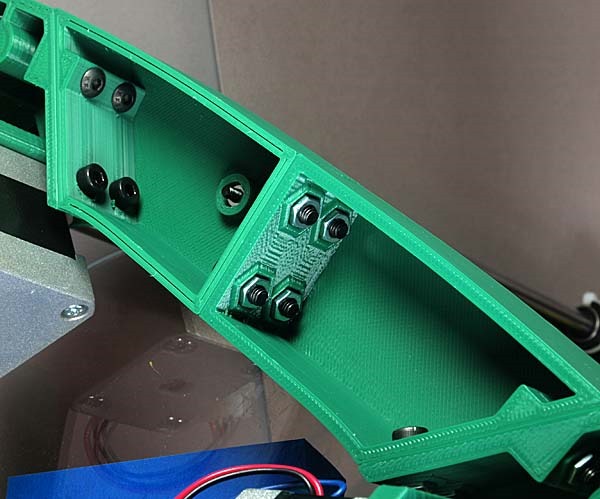

Connect the base pieces with M4 x 10 and M4 x 20 screws and nuts. The wings connect to each other with four sets of M4 x 10 screws and nuts. While the wings connect to the motor mount with a pair of M4 x 10 and another pair of M4 x 20 screws. Assemble these on a flat surface and ensure the screws are tight:
Milling the Extrusions

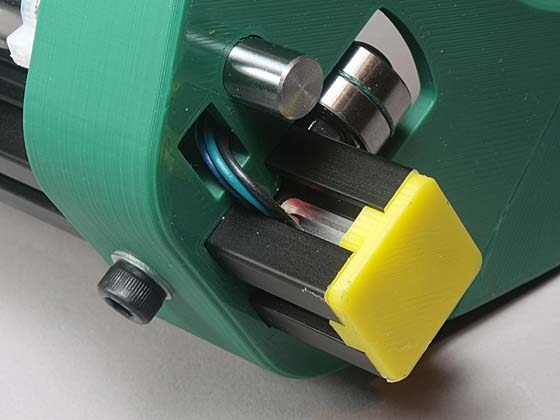

There is enough room inside the extrusion to run wires for the stepper motors. You’ll need to mill a slot on each end of each extrusion in order to accommodate the wires. Here is what the slot looks like on the bottom:
You can see that the slot is toward the middle of the printer. On the top, the slot should be to the side shown here:
Take your time to ensure the slots are milled in the correct location, and that they’re smooth so they won’t cut into the wires.
Insert a T nut into the extrusion and then insert the extrusion into the base. Fasten in place with an M5 x 8 screw and washer. You’ll need to make sure the T nut is aligned with the hole first, of course. Once you have the screw started in the T nut, and before you tighten, make sure the extrusion is flush with the bottom of the base, as shown in the first image of this section.
Print three of these end caps and install them on the bottom of the extrusions (so you don’t scratch your work surface):
I modified these end caps from this Thingiverse part: http://www.thingiverse.com/thing:45339.

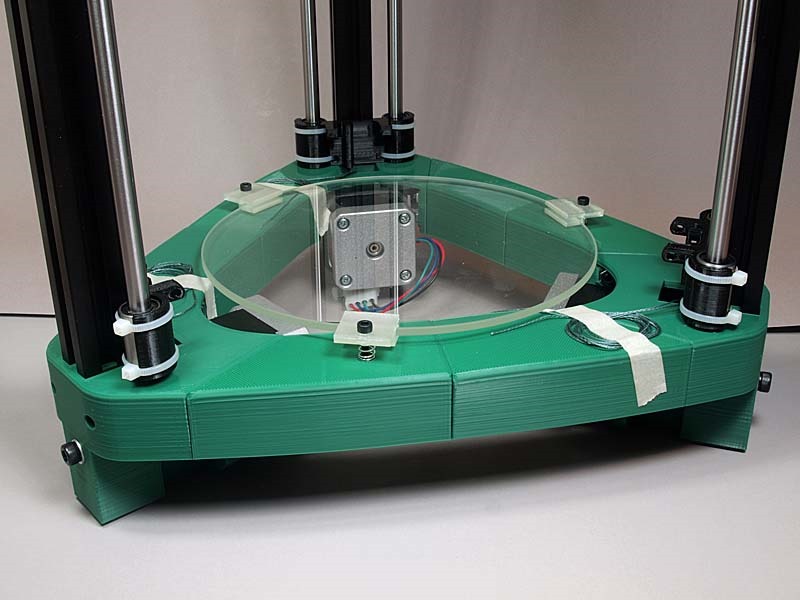

Once you’re finished, the base will look something like this (without the carriages, stepper motors, and bed):
Assembling the Upper Frame
The upper frame, like the lower frame, is made from 9 printed parts. Note that the three parts for the top all have the same file names as the corresponding bottom parts, but they’re in a folder named Top on Github. In case you’re curious, both the top and bottom files are contained in the same Solidworks file, which is why the STL files have the same name.

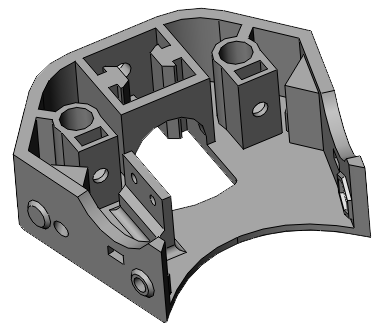

Print 3 of 3DR Bottom Motor Mount.STL:
Note that this has the same file name as the bottom motor mount, but it’s a different file (it’s in the Top folder in Github).

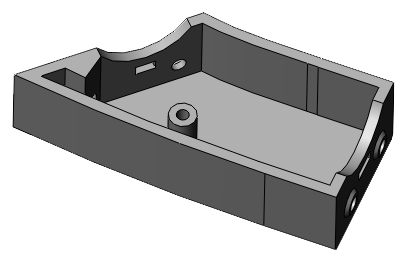

Print 2 (note, only two) of Wings.STL:

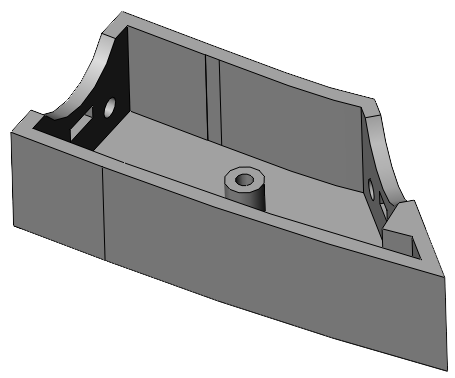

Print 3 of Wing Mirror Long Top.STL:

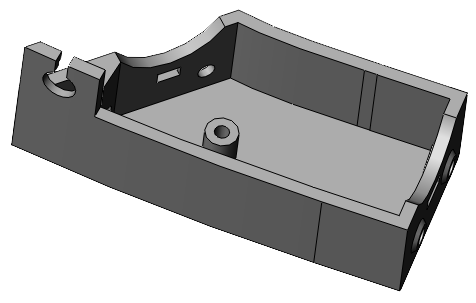

Print 1 of Wings with Power.STL
Assemble on a flat surface using M4 x 10 and M4 x 20 screws and nuts, just like you did for the base. Once assembled, it will look like this (without the electronics, of course):
Printing the Remaining Parts
Before you can complete assembly, you’ll need to print some more parts (while your Printrbot Simple is still assembled and working):

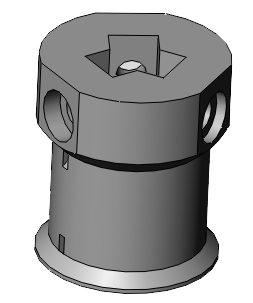

Print 3 of Spool.STL:

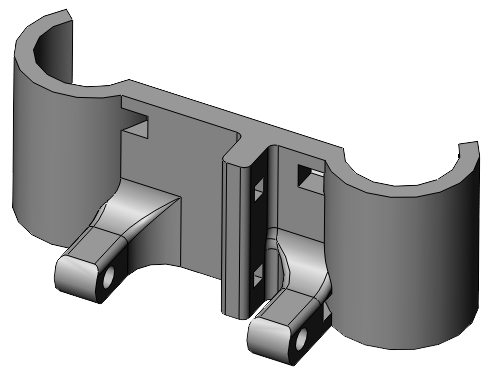

Print 3 of Carriage for LM8UU.STL:
Print 12 of Bearing Shaft Coupler.STL (assuming you’re going to make your own rods with 3 mm inside diameter carbon fiber rods):

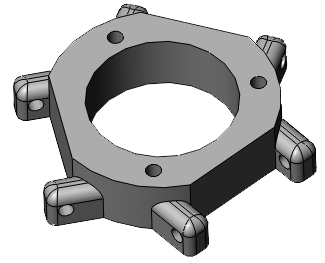

Print one of Platform.STL:

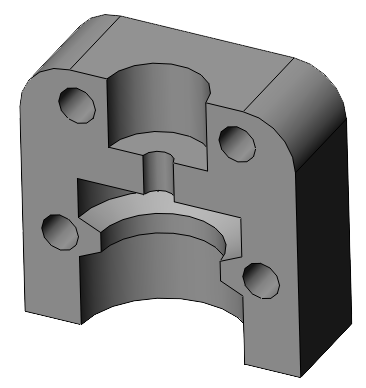

Print one of Hot End Holder.STL:

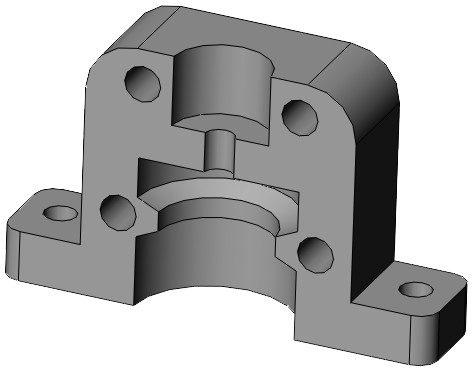

Print one of Hot End Holder Tabs.STL:

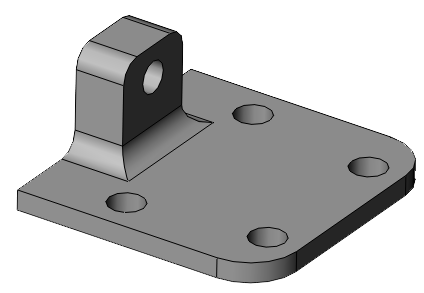

Print one of Hot End Plate.STL:

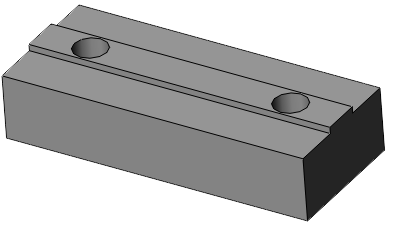

Print one of Extruder Spacer.STL:
Print Extruder Parts
For the extruder, I used RichRap’s parts without change:
Print one of 3DR_Extruder_body_V2_Test_001_RTP.stl
Print one of RichRap_Greg_style_Guidler_Modified_with_grab_lever_For_1_RTP.stl:
Print one of herringbone-gear-large.stl:
Print one of herringbone-gear-small.stl:
Next Steps
In the part II, I’ll continue with the assembly instructions. You’ll need to ensure you have all the parts printed and they’re of good quality before you continue, as the next step will be to disassemble your Printrbot Simple so you can reuse parts form it.
